  • 2240-RE

High Performance and High Density

  • Dual 4th/5th Gen Intel® Xeon® Scalable processors (up to 64 cores/CPU, 105MB L3 cache)

  • 32 DDR5 DIMM slots (8TB max at 5600MT/s) with Persistent Memory support

  • Up to 45x 2.5" or 20x 3.5" + 4x 2.5" hot-swap bays (34 NVMe SSDs supported)

Enterprise-Grade Scalability

  • 20 PCIe 4.0 slots (including 2x OCP 3.0) for GPUs/NICs/accelerators

  • Flexible storage: Supports 40x E1.S/E3.S drives in addition to traditional bays

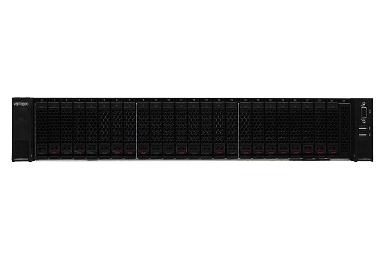

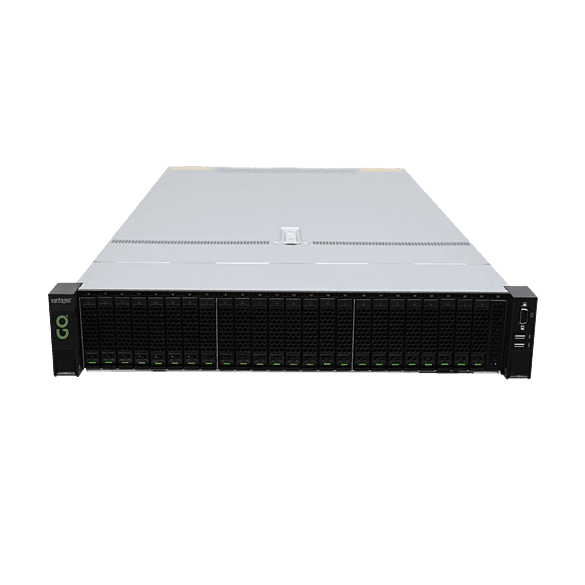

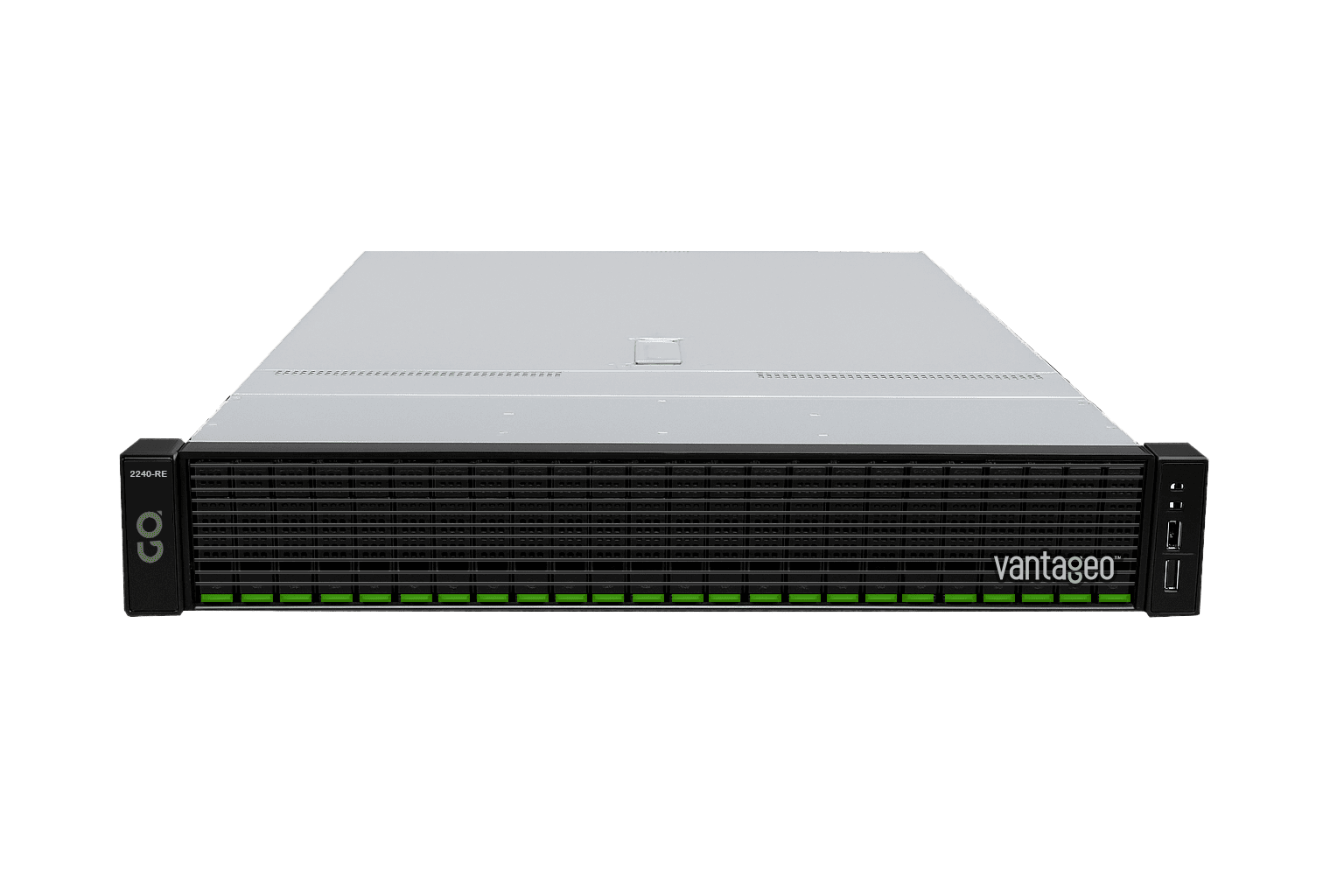

Vantageo 2240-RE

The Vantageo 2240-RE is a 2U dual-socket rack server supporting 4th/5th Gen Intel® Xeon® Scalable processors (Eagle Stream). Designed for cloud, virtualization, and data-intensive workloads, it combines high compute density with flexible storage and expansion options.

Intelligent Management

  • Vantageo Server Suite with predictive analytics and automated O&M

  • IPMI 2.0, Redfish, and KVM-over-LAN for remote management

Mission-Critical Reliability

  • 1+1 redundant power (550W–2700W 80+ Platinum/Titanium)

  • Hardware Root of Trust, Secure Boot, and runtime firmware validation

Technical Specifications

Processor2x 4th/5th Gen Intel® Xeon® (Eagle Stream), 64 cores/CPU, 105MB L3 cache
Memory32x DDR5, 8TB max, 5600MT/s (5th Gen), PMem support
Storage45x 2.5" or 20x 3.5" + 4x 2.5" hot-swap, 34 NVMe SSDs, 40 E1.S/E3.S
PCIe Slots20x PCIe 4.0 (2x OCP 3.0)
NetworkingOCP 3.0 (1/10/25/100GbE)
Power Supply1+1 redundant 550W–2700W 80+ Platinum/Titanium
SecurityTPM 2.0, Secure Boot, Silicon Root of Trust
OS SupportWindows Server, RHEL, SLES, Ubuntu, VMware vSphere 7.0/8.0
Download Product Datasheet
Download Product Description
Download Product Manual
Download Product Drivers
Download Product - Bios
Download Product Firmware
Raid User Guide
Replacement
Alarm Handling
Trouble Shooting
Redfish Interface Description
Log Reference
Routine Maintenance
BMC user guide
IPMI interface description
SNMP interface description
