High Performance and High Density
Supports four 4th Gen Intel® Xeon® Scalable processors with up to 60 cores each (240 cores total) and 105MB L3 cache per CPU.
64 DDR5 DIMM slots (16TB max with 256GB modules) with 4800MT/s speed and Persistent Memory support.
Up to 50x 2.5" or 8x 3.5" + 2x M.2 storage bays (40 NVMe SSDs supported).
Unmatched Scalability
22 PCIe 5.0 expansion slots (including OCP 3.0) for GPUs, NICs, and accelerators.
2+2 redundant power supplies (550W–2600W 80+ Platinum/Titanium).

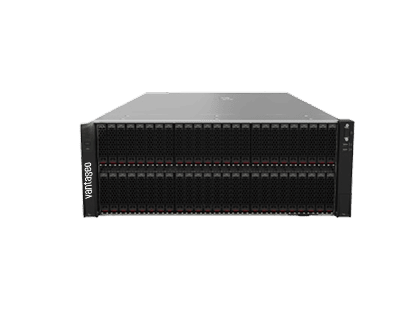

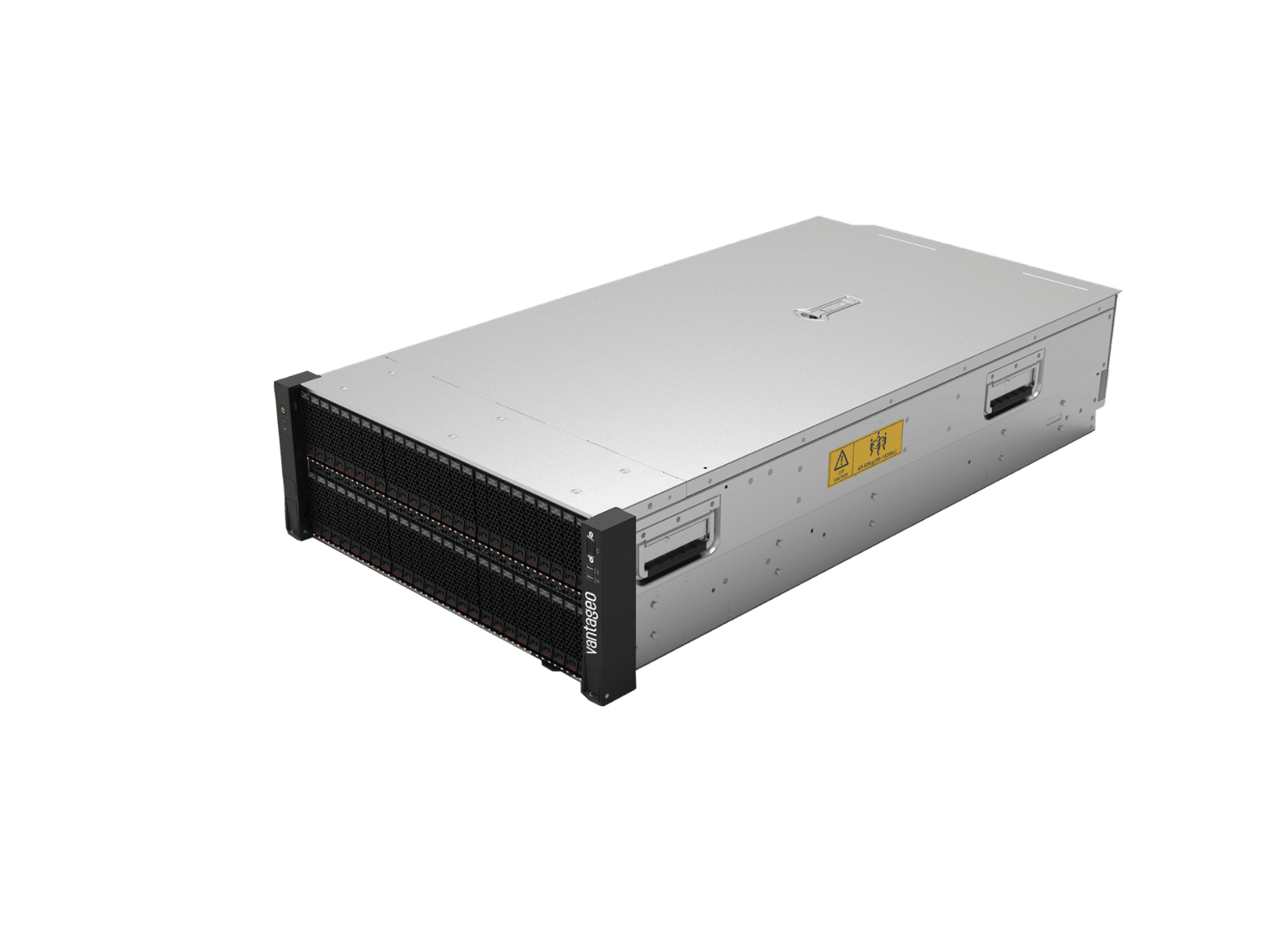

Vantageo 4440-RE
The Vantageo 4440-RE is a high-performance 4U quad-socket rack server designed for compute-intensive workloads, supporting four 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids). It combines massive processing power with exceptional memory capacity and storage flexibility, making it ideal for large-scale databases, HPC, cloud, and virtualization environments.
Enterprise-Grade Management
Vantageo Server Suite with predictive analytics and automated O&M.
IPMI 2.0, Redfish, and KVM-over-LAN for remote management.
Robust Security
Silicon Root of Trust, Secure Boot, TPM 2.0, and runtime firmware validation.
Technical Specifications
| Form Factor | 4U rack server |
| Processor | 4x 4th Gen Intel® Xeon® Scalable (Sapphire Rapids), up to 60 cores/CPU |
| Memory | 64x DDR5 slots (16TB max), 4800MT/s, ECC, PMem support |
| Storage | Front: 50x 2.5" or 8x 3.5" + 2x M.2 (NVMe/SAS/SATA) |
| RAID | 0/1/5/6/10/50/60 with 12Gbps SAS cards (2GB/4GB/8GB cache) |
Vantageo 4440-RE
The Vantageo 4440-RE is a high-performance 4U quad-socket rack server designed for compute-intensive workloads, supporting four 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids). It combines massive processing power with exceptional memory capacity and storage flexibility, making it ideal for large-scale databases, HPC, cloud, and virtualization environments.
High Performance and High Density
Supports four 4th Gen Intel® Xeon® Scalable processors with up to 60 cores each (240 cores total) and 105MB L3 cache per CPU.
64 DDR5 DIMM slots (16TB max with 256GB modules) with 4800MT/s speed and Persistent Memory support.
Up to 50x 2.5" or 8x 3.5" + 2x M.2 storage bays (40 NVMe SSDs supported).
Unmatched Scalability
22 PCIe 5.0 expansion slots (including OCP 3.0) for GPUs, NICs, and accelerators.
2+2 redundant power supplies (550W–2600W 80+ Platinum/Titanium).
Enterprise-Grade Management
Vantageo Server Suite with predictive analytics and automated O&M.
IPMI 2.0, Redfish, and KVM-over-LAN for remote management.
Robust Security
Silicon Root of Trust, Secure Boot, TPM 2.0, and runtime firmware validation.
Technical Specifications
| Form Factor | 4U rack server |
| Processor | 4x 4th Gen Intel® Xeon® Scalable (Sapphire Rapids), up to 60 cores/CPU |
| Memory | 64x DDR5 slots (16TB max), 4800MT/s, ECC, PMem support |
| Storage | Front: 50x 2.5" or 8x 3.5" + 2x M.2 (NVMe/SAS/SATA) |
| RAID | 0/1/5/6/10/50/60 with 12Gbps SAS cards (2GB/4GB/8GB cache) |
