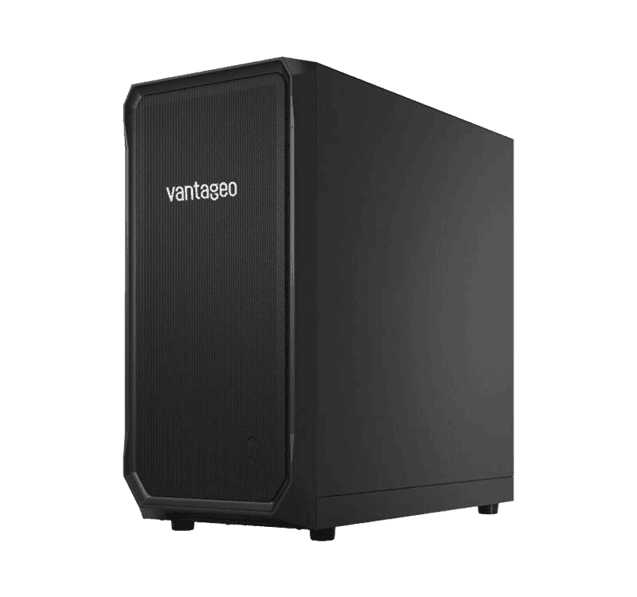

Vantageo 25M1-WG
The Vantageo 25M1-WG offers exceptional compute density, making it ideal for virtualization, large-scale databases, and AI workloads.
It supports up to 4TB of DDR4 ECC memory, ensuring seamless multitasking and data integrity across enterprise applications.
Flexible storage options include hot-swappable NVMe, SAS, and SATA drive bays, tailored for high-capacity and high-speed requirements.
The system includes integrated IPMI for remote management, allowing administrators to monitor and control the server from anywhere.
Built with enterprise-grade components, the 25M1-WG ensures maximum uptime with features like redundant cooling and power failover protection.
Its modular design simplifies upgrades and maintenance, reducing downtime and total cost of ownership over time.
Backed by Vantageo’s industry-leading support and warranty options, it’s a future-ready server that adapts to evolving business needs.
Technical Specifications
| Component | Details |
|---|---|
| Processor | Dual AMD EPYC™ 7003/7002 (up to 64 cores, 128 threads, 280W TDP) |
| Chipset | System on Chip (SoC) |
| Memory | 16 DIMM slots, DDR4, up to 3200 MHz, up to 256GB per DIMM supported |
| Drive Bays | 8 x 2.5" hot-swap + 8 x 3.5" hot-swap |
| Power Supply | Redundant CRPS 1+1, 1600W / 1000W |
| Form Factor | Tower (H: 90mm, W: 490mm, L: 660mm, Max weight: 32kg) |
| Operating Systems | Windows Server, RHEL, SUSE, Ubuntu, VMware, Citrix |
| PCIe Slots | 5 x PCIe Gen4 (x16/x8) |
| LAN | 2 x RJ45 Gigabit Ethernet ports |
| USB Ports | 2 x USB 3.0 |
| Video Output | 1 x VGA |
| Serial Port | 1 x COM (rear) |
| M.2 Slot | 1 (supports 2280/22110 cards) |
| SlimSAS Ports | 2 |
| TPM | 1 TPM header |
| Management | Aspeed® AST2600, AMI MegaRAC SP-X |
| Operating Temperature | 10°C to 40°C (Operating), -40°C to 60°C (Storage) |
| Humidity | 20%, non-condensing at 95°C |
| Support Options | NBD, 24x7 - 4hrs Response, CTR options up to 6 hrs |
No software files available for this model yet.
No firmware files available for this model yet.
