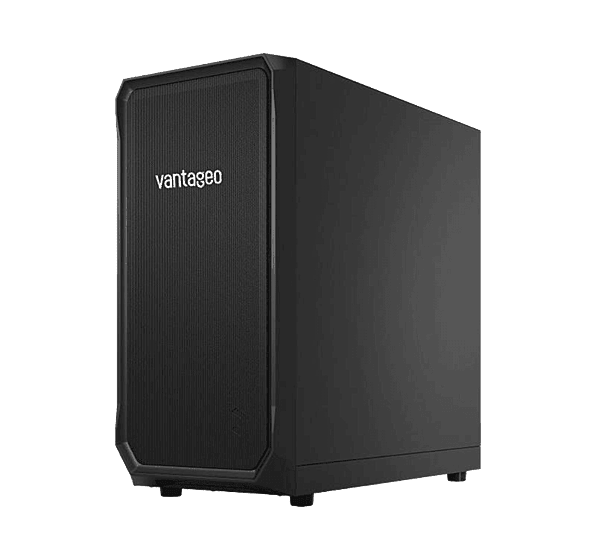

Vantageo 2540-WS

The Vantageo 2540-WS is a high-performance workstation engineered for intensive computing tasks, featuring support for the latest 5th and 4th Gen Intel® Xeon® Scalable Processors, massive memory scalability, and robust expansion capabilities. Ideal for enterprise-grade applications, it combines performance, reliability, and manageability in a rack-optimized form factor.

Technical Specifications

CategorySpecification
ModelVantageo 2540-WS
Form FactorRackmount
Processor SupportDual Socket E (LGA-4677), 5th/4th Gen Intel® Xeon® Scalable Processors
ChipsetIntel® C741
Memory TypeECC DDR5 RDIMM
Memory SpeedUp to 5600 MT/s
Memory Slots16 DIMM slots
Max Memory CapacityUp to 4TB (1DPC)
Drive Bays8x 3.5" hot-swap SATA3 (Configurable to SAS or 4x NVMe)
M.2 Support2x M.2 NVMe
Expansion SlotsNot specified
I/O Ports6x USB 3.0 (2 front, 4 rear), 1x VGA, 1x COM, 2x SuperDOM ports
Networking1x RJ45 Dedicated BMC LAN port
IPMIIPMI 2.0, virtual media over LAN, KVM-over-LAN
SecurityTPM 2.0, Silicon Root of Trust (RoT), NIST 800-193 Compliant
Operating Temperature10°C to 35°C (50°F to 95°F)
Non-Operating Temperature-40°C to 60°C (-40°F to 140°F)
Humidity (Non-Operating)5% to 95% (non-condensing)
Dimensions (HxWxL)452 x 178 x 647 mm
WeightMax. 25.9 kg
Power Supply1200W Redundant Titanium Level Power Supplies
Supported OSWindows® 11, Windows® 10 64-bit
Management SoftwareEmbedded BMC with IPMI 2.0, KVM-over-LAN
Vantageo – 2540-WS
Vantageo – 2540-WS Datasheet New
Version: R1.0 | 2025 | PDF

No software files available for this model yet.

No firmware files available for this model yet.

Download Product Datasheet
Download Product Description
Download Product Manual
Download Product Drivers
Download Product - Bios
Download Product Firmware
