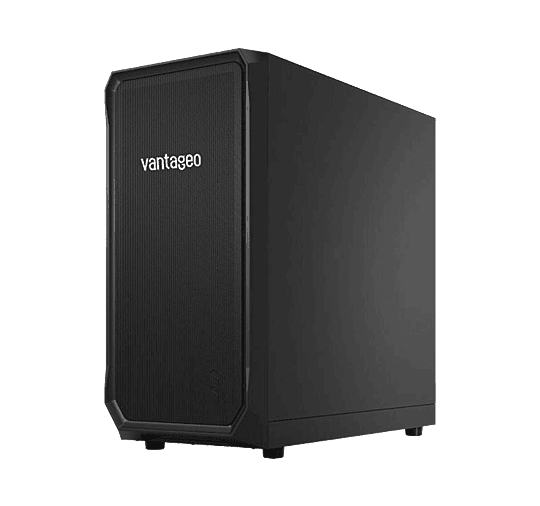

Vantageo 15QO-WS
The Vantageo 15QO-WS is a powerful, scalable workstation engineered for high-performance computing applications such as AI, machine learning, and data science. Powered by the Intel® Xeon® W-3400 processor, it supports a wide range of GPUs and memory configurations, offering exceptional performance, expandability, and reliability. Built with a robust 5U form factor, the system supports up to 2TB of DDR5 ECC memory, multiple PCIe 5.0 slots, and a high-efficiency 2000W power supply — making it ideal for professionals demanding intensive compute workloads.
Technical Specifications
Category | Specification |
---|---|
Processor | Intel® Xeon® W-3400 (up to 60 cores / 128 threads) |
Chipset | Intel® W790 |
Form Factor | 5U Rackmount |
Memory Slots | 16 DIMM slots |
Max Memory | Up to 2TB DDR5 ECC RDIMM/LRDIMM, 4800 MT/s |
GPU Support | Up to 2 quad-width / 2 triple-width / 4 double-width / 4 single-width GPUs |
Supported GPUs | NVIDIA T1000, RTX A6000, A5000, A4500, A4000, A2000, RTX 6000 Ada, RTX 4090/4080 |
Expansion Slots | 6x PCIe 5.0 x16 FHFL |
Drive Bays | 4x 3.5" SATA drive bays |
M.2 Slots | 4x M.2 PCIe 5.0 x4 NVMe (2280/22110) |
Peripheral Bays | 2x 5.25” |
Network Ports | 1x 10GbE, 1x 1GbE RJ45 |
USB Ports | USB 2.0 (front & rear), USB 3.0 Gen 1 Type-A & Type-C |
Video Output | 1x VGA |
Security | TPM 2.0, Silicon Root of Trust (RoT) |
Power Supply | 1x 2000W Platinum Level (92%) redundant |
Cooling | 3x High-performance fans (1x 120mm + 2x 120mm) |
Buttons | Power On/Off, LED status, LED light bar ON/OFF |
Operating Temp. | 10°C to 35°C (50°F to 95°F) |
Non-Operating Temp. | -40°C to 60°C (-40°F to 140°F) |
Humidity | 5%–95% (Non-condensing) |
Dimensions (H x W x D) | 535 x 222 x 573 mm |
Management | ACPI 6.0 Power Management |
Support Options | 24x7 support with options for 4hr/6hr/Next Business Day resolution |
