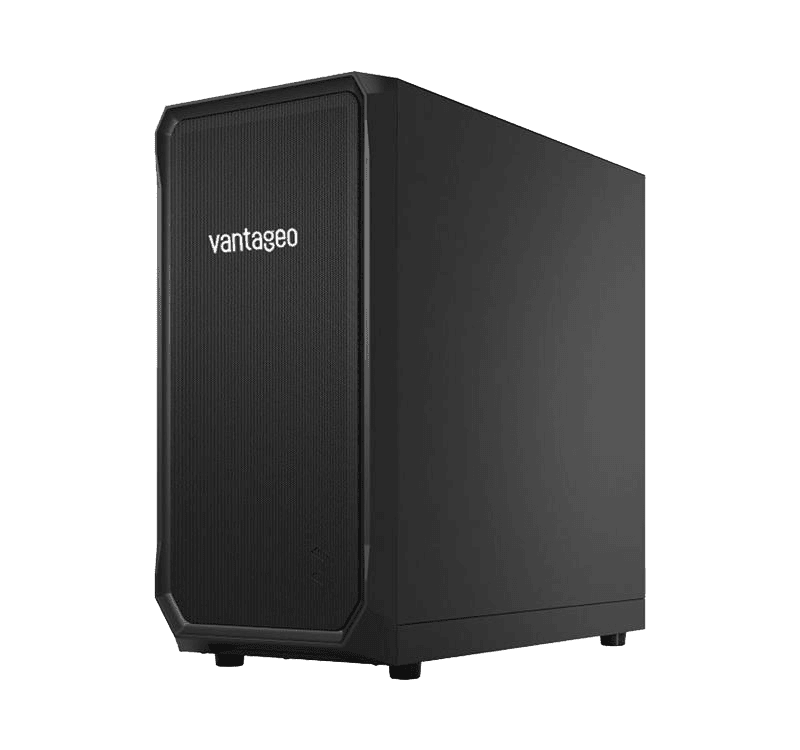

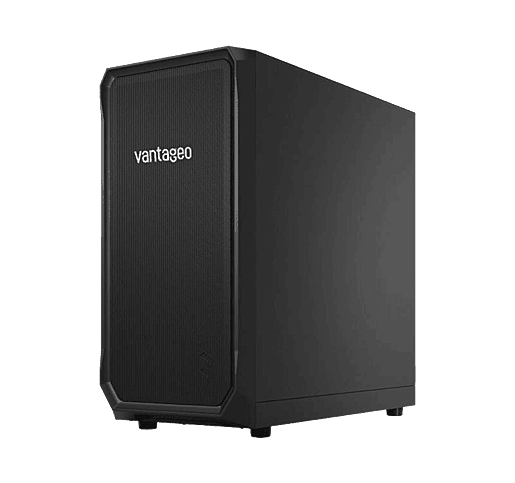

Vantageo 15P0-WS
The Vantageo 15P0-WS is a high-performance workstation designed for professionals who demand extreme processing power and scalability. Built around Intel® Xeon® W-3400/W-2400 series processors (LGA-4677 socket) with support for up to 60 cores and 385W TDP, this workstation is engineered for CPU-heavy workloads like 3D rendering, scientific computing, and AI development. Featuring PCIe 5.0 support, up to 2TB of DDR5 ECC memory, and flexible GPU configurations (including triple-width cards), it delivers unmatched performance for demanding applications. With dual LAN (10GbE + 1GbE), IPMI remote management, and configurable power supplies (up to 1600W), the 15P0-WS is a powerhouse for studios, research labs, and data centers.
Technical Specifications
| Category | Specification |
|---|---|
| Processor | Intel® Xeon® W-3400/W-2400/W-3500/W-2500 Series (LGA-4677), up to 60 cores, 385W TDP |
| Chipset | Intel® W790 |
| Memory | 8 x DDR5 DIMMs, up to 2TB ECC RDIMM (4800MT/s 1DPC, 4400MT/s 2DPC) |
| GPU Support | 3 x PCIe 5.0 x16 slots (supports 3 single/2 double/2 triple-width GPUs) |
| Storage | 6 x SATA3 (RAID 0/1/5/10), 2 x M.2 NVMe (PCIe 5.0 x4, 22110/2280) |
| Networking | 1 x 10GbE (Marvell AQC113), 1 x 1GbE (Intel I210-AT, shared with IPMI) |
| Expansion Slots | 3 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 |
| USB/Connectivity | 4x USB 3.2 Gen2 (Rear Type-A), 2x USB 3.2 Gen2x2 (Type-C), 2x USB 2.0 (Headers) |
| Audio | Realtek ALC888S HD Audio |
| Power Supply | 750W/1000W/1200W/1600W (configurable) |
| Management | IPMI support, SuperCloud Composer®, TPM 2.0, ACPI power management |
| Form Factor | Mid-Tower Chassis |
| Operating Conditions | 0°C–50°C (32°F–122°F), -40°C–70°C non-operating |
No software files available for this model yet.
No firmware files available for this model yet.
