  • VB2400-32Q

    VB2400-32Q

VB2400-32Q

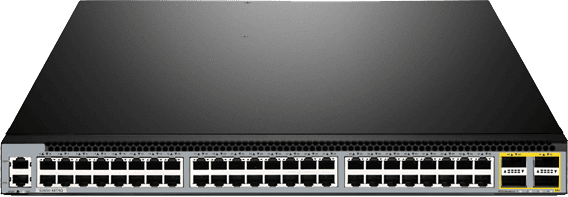

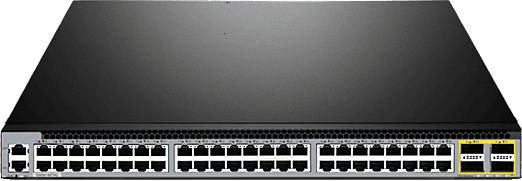

The Vantageo VB2400-32Q enterprise switch is a high-performance enterprise switch designed to meet the demanding requirements of modern data centers and cloud environments. Featuring 48x 10GbE SFP+ ports and 6x 100GbE QSFP28 uplinks, this switch delivers full line-rate switching at Layer 2 and Layer 3, making it ideal for Top-of-Rack (ToR) deployments or as part of a distributed spine fabric. With support for advanced network virtualization technologies like VXLAN and NVGRE, redundant power supplies, and hot-swappable fan modules, the VB2400-32Q ensures reliability, scalability, and flexibility for enterprise and cloud applications. Its open architecture allows compatibility with various Network Operating Systems (NOS), including commercial and open-source options, providing a future-proof solution for evolving network needs.

Technical Specifications

Form Factor1U rack server
Cabinet19-inch ≥1,000mm-deep cabinet
ChipsetIntel C741
Processor1/2 Intel® 4th/5th Gen Xeon® Scalable (Eagle Stream), up to 64 cores per CPU
CPU Interconnect3 UPI links, 20GT/s
Memory32 DDR5 slots, max 5,600MT/s, Advanced ECC
DIMM Options16GB/32GB/64GB/128GB/256GB DDR5-5600/4800
RAID Support0/1/5/6/10/50/60 with power-off protection
Front Storage10x 2.5" hot-swap (SAS/SATA/NVMe SSD)
Near Storage2x 2.5" hot-swap (optional SAS/SATA/NVMe SSD)
Max NVMe SSDs12
PCIe Slots6 total (3 standard, 2 OCP 3.0 NIC, 1 RAID card)
GPU Support2 high-performance GPUs
Power Supply1+1 redundant, 550W/800W/1200W/1600W/2000W (Platinum/Titanium)
Input Voltage110V/220V AC, 240V/336V HVDC, -48V DC
Cooling8 hot-swappable fans, N+1 redundancy
ManagementIPMI/SNMP/Redfish, Vantageo Server Suite, KVM
SecurityTPM, Secure Boot, Authenticated BIOS
USB Ports2x rear USB 3.0, 1x front USB 3.0, 1x internal USB 3.0, 1x front USB 2.0
Video Ports2x VGA (front + rear)
Serial Port1x
Dimensions432mm (W) × 43mm (H) × 780mm (D)
Weight≤27kg (full config, no rails)
Operating Temp+5°C to +45°C (config-dependent)
Humidity8–90% RH (operating), 5–95% RH (storage)
Altitude≤3,000m (no HDDs above 3,000m)
Vantageo – VB2400-32Q
Vantageo – VB2400-32Q Datasheet New
Version: R1.0 | 2025 | PDF

No software files available for this model yet.

No firmware files available for this model yet.

Download Product Datasheet
Download Product Description
Download Product Manual
Download Product Drivers
Download Product - Bios
Download Product Firmware
