    Vantageo 2240-60-ST

Vantageo 2240-60-ST

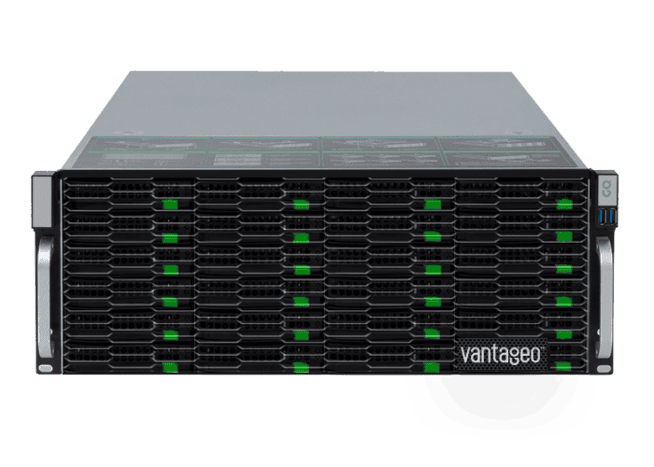

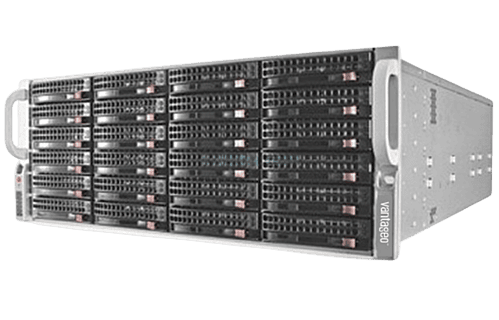

The Vantageo 2240-60-ST is a high-density 4U rack server engineered for demanding enterprise workloads, offering exceptional storage capacity, powerful processing capabilities, and advanced management features. Designed for data centers requiring massive storage and high performance, this server supports dual 2nd Gen Intel® Xeon® Scalable Processors, up to 6TB of memory, and 60 hot-swap drive bays, with optional NVMe support for ultra-fast storage. With redundant power supplies, hardware RAID, and compatibility with major operating systems, the Vantageo 2240-60-ST is ideal for virtualization, big data, and mission-critical applications.

Technical Specifications

ProcessorDual Socket P (LGA 3647), 2nd Gen Intel® Xeon® Scalable Processors, up to 28 cores, TDP 70–205W, 3 UPI up to 10.4GT/s
ChipsetIntel® C621
Memory24 DIMM slots, up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, supports Intel® Optane™ DCPMM
Drive Bays60x 3.5" SAS3/SATA3 hot-swap, 2x 2.5" SATA3 hot-swap (rear), 6 NVMe bays (optional)
Power SupplyRedundant CRPS 1+1, 2000W (Titanium/Platinum)
Expansion Slots2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8
Storage Interfaces4x SATA3 (6Gbps) ports
RAID Controller OptionsBroadcom 3108, SAS3 (12Gbps), HW RAID 0/1/5/6/10/50/60
I/O Ports2x USB 3.0 Gen1 (1x Type A), 2x RJ45 1GbE LAN, 1x VGA, 1x Fast UART 16550 serial port + 1 header, 1x TPM Header
ManagementIPMI 2.0, Intel® Node Manager
Supported OSWindows Server 2016/2019, Hyper-V 2016, RHEL 7.5, SUSE Linux 12 SP3, Ubuntu 18.04.5 LTS, CentOS 7.4
Form FactorRackmount (4U)
Dimensions (W x H x D)437mm x 178mm x 767mm (excluding bezel)
WeightMax 78 kg
Operating EnvironmentOperating Temp: 10–35°C (50–95°F), Non-Operating Temp: -40–60°C (-40–140°F), Humidity: 5–95% (non-condensing)
Support Options24x7 - 4hr Response (Next Business Day, 24hr, or 6hr Call to Resolution CTR); Consulting & Deployment available
Vantageo 2240-60-ST
Vantageo 2240-60-ST Datasheet New
Version: R1.0 | 2025 | PDF

No software files available for this model yet.

No firmware files available for this model yet.

Download Product Datasheet
Download Product Description
Download Product Manual
Download Product Drivers
Download Product - Bios
Download Product Firmware
