Vantageo 2230-24-ST

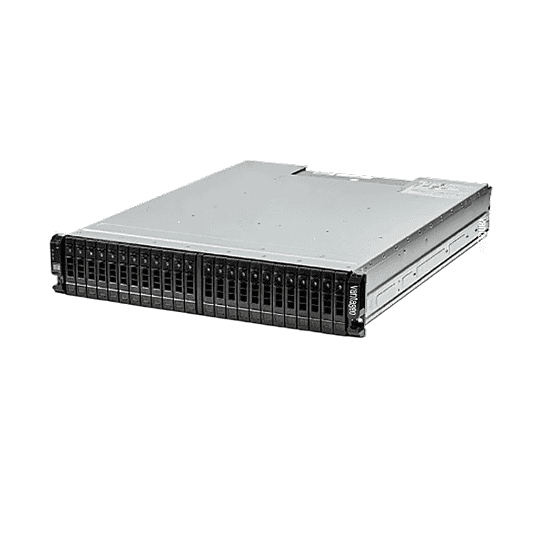

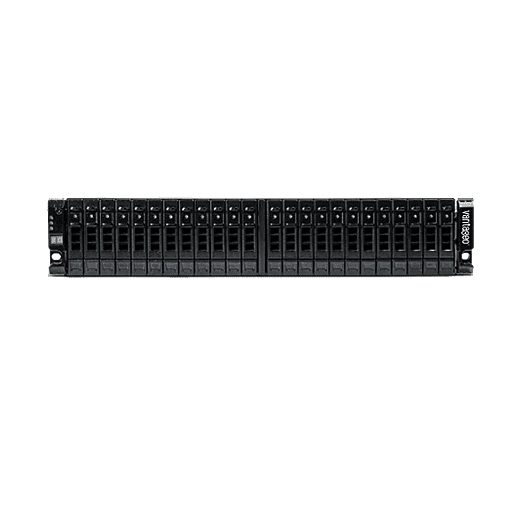

The Vantageo 2230-24-ST is a high-density 2U rack server designed for enterprise workloads, featuring dual Intel® Xeon® Scalable Processors (LGA 3647) and support for up to 6TB DDR4 ECC memory. With 24 hot-swap 3.5" SAS3/SATA3 bays, redundant Titanium/Platinum PSUs, and embedded management (IPMI 2.0), it excels in virtualization, storage, and data center deployments.

Key Features

  • High Storage Density: 24 hot-swap bays for large-scale data storage.

  • Enterprise Reliability: Redundant PSUs, ECC memory, and hardware RAID.

  • Remote Management: IPMI 2.0 for out-of-band control.

  • Flexible Deployment: Broad OS compatibility for diverse workloads

Technical Specifications

CategorySpecification
ProcessorDual LGA 3647, 2nd Gen Intel® Xeon® Scalable (70–165W TDP), 3 UPI @ 10.4GHz
ChipsetIntel C621
Memory24 x DIMM slots, up to 6TB DDR4-2933 ECC RDIMM/LRDIMM, Intel Optane™ DCPMM support
Storage24 x 3.5" hot-swap SAS3/SATA3 + 2 x 2.5" SATA3 (rear); Broadcom 3108 RAID 0/1/5/6/10/50/60
Expansion Slots2 x PCIe 3.0 x16, 1 x PCIe 3.0 x8
Networking2 x 1GbE (RJ45), Intel® Node Manager
Power Supply1100W/1600W CRPS (Titanium/Platinum), 1+1 redundant
I/O Ports8 x SATA3, 2 x USB 3.0, 1 x VGA, 1 x TPM header
ManagementIPMI 2.0, KVM, Redfish support
OS SupportWindows Server 2016/2019, RHEL 7.5, SLES 12 SP3, Ubuntu 18.04, CentOS 7.4
Form Factor2U Rack (89mm H × 437mm W × 863mm D), max 42kg
Operating Conditions10°C–35°C (50°F–95°F), 5%–95% humidity
