  • 22G1-RE

    22G1-RE

High Performance and High Density

Supports up to 256 cores / 512 threads in dual-processor configurations, with DDR5-4800 memory and PCIe Gen5 expansion.

Advanced Management

Features Vantageo Server Suite for remote monitoring, automated firmware updates, and predictive failure alerts.

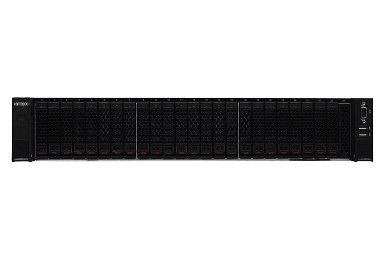

Vantageo 22G1-RE

The Vantageo 22G1-RE is an enterprise-class 2U rack server designed for high-performance computing, cloud infrastructure, and data-intensive workloads. Built around AMD's fourth-generation EPYC 9004 series processors, it delivers exceptional scalability, reliability, and energy efficiency, making it ideal for modern data centers, big data analytics, and software-defined environments.

Massive Storage Flexibility

Configurable with up to 33 hot-swappable drives, including NVMe U.2 SSDs, SAS, and SATA options.

Energy Efficiency

80PLUS-certified power supplies, intelligent cooling, and support for high-voltage DC power reduce operational costs.

Technical Specifications

CategorySpecification
Form Factor2U Rack (432mm × 87.6mm × 780mm)
Processor1/2× AMD EPYC 9004 series (up to 128 cores/256 threads per CPU)
Memory24× DDR5-4800 RDIMM slots, max 12TB (16GB–512GB modules)
StorageDrive Bays:
- 2.5": Up to 24× SAS/SATA or 25× (8× NVMe U.2)
- 3.5": Up to 12× SAS/SATA
RAID Support: 0, 1, 5, 6, 10, 50, 60 (2GB–8GB cache)
Expansion Slots12× PCIe Gen5 (incl. 2× OCP 3.0)
GPU SupportUp to 4× double-wide GPUs
NetworkingOnboard: 1G RJ45 (OCP)
Optional NICs: 1G/10G/25G/100G (Intel, Mellanox, QLogic)
I/O Ports4× USB (2× rear, 1× USB 3.0 + 1× USB 2.0 front), 2× VGA, 1× serial, 1× IPMI
Power SupplyHot-swappable, redundant (550W–3200W, 80PLUS Platinum/Titanium)
Cooling4× hot-swappable fans with dynamic speed control
ManagementVantageo Server Suite, IPMI, remote KVM, telemetry, LDAP/RBAC
SecurityTPM 2.0, secure boot, firmware signing, disk encryption
Operating Temp5°C to 40°C (altitude-dependent)
Weight40kg (fully configured)
OS SupportWindows: Server 2019/2022
Linux: RHEL 8.x/9.x, SLES 15, Ubuntu 22.04/24.04
Virtualization: VMware ESXi 7.0/8.0, Hyper-V, KVM, OpenShift
Vantageo – 22G1-RE
Vantageo 22G1-RE Datasheet New
Version: R1.0 | 2025 | PDF

No software files available for this model yet.

No firmware files available for this model yet.

Download Product Datasheet
Download Product Description
Download Product Manual
Download Product Drivers
Download Product - Bios
Download Product Firmware
