High Performance and High Density
Supports dual 5th Gen Intel® Xeon® Scalable processors with up to 64 cores per CPU.
Accommodates up to 32 DDR5 DIMMs (4TB max) and 14 NVMe drives for accelerated data processing.
GPU-ready with support for up to four dual-slot GPUs (Intel Flex Series/NVIDIA A100).
High Scalability and High Bandwidth
Flexible storage: 12 front-accessible 3.5"/2.5" hot-swap bays (8x NVMe/SAS/SATA + 4x NVMe/SATA) and optional 2x rear NVMe/SATA bays.
Nine PCIe 5.0 slots (including OCP 3.0) for high-bandwidth expansion.

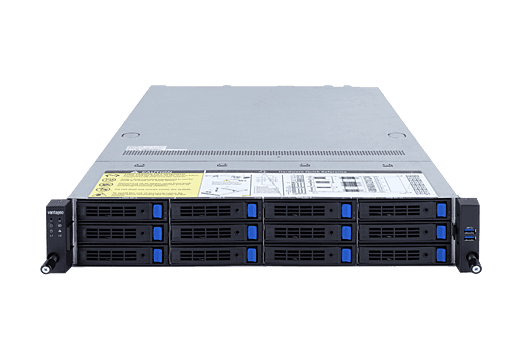

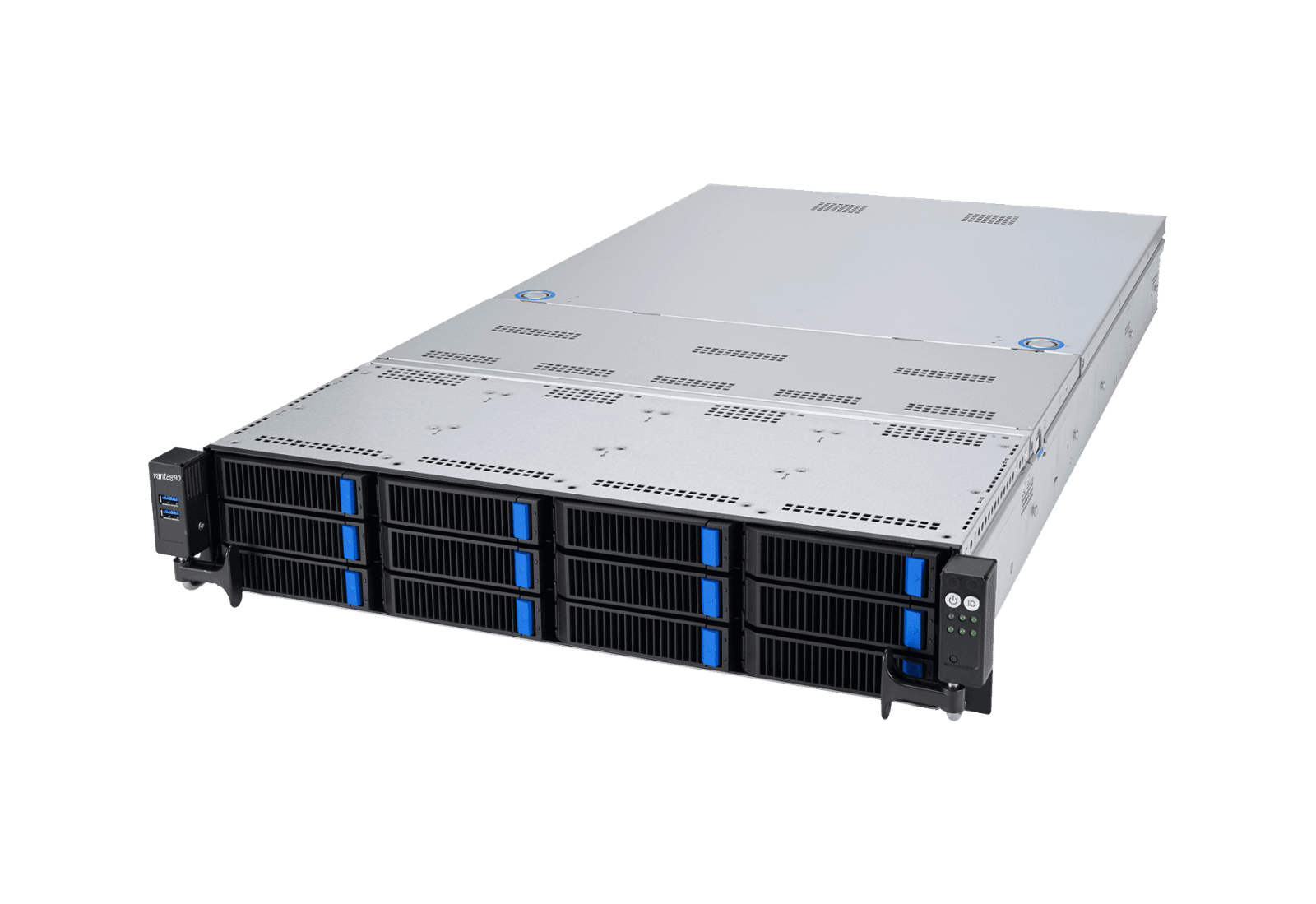

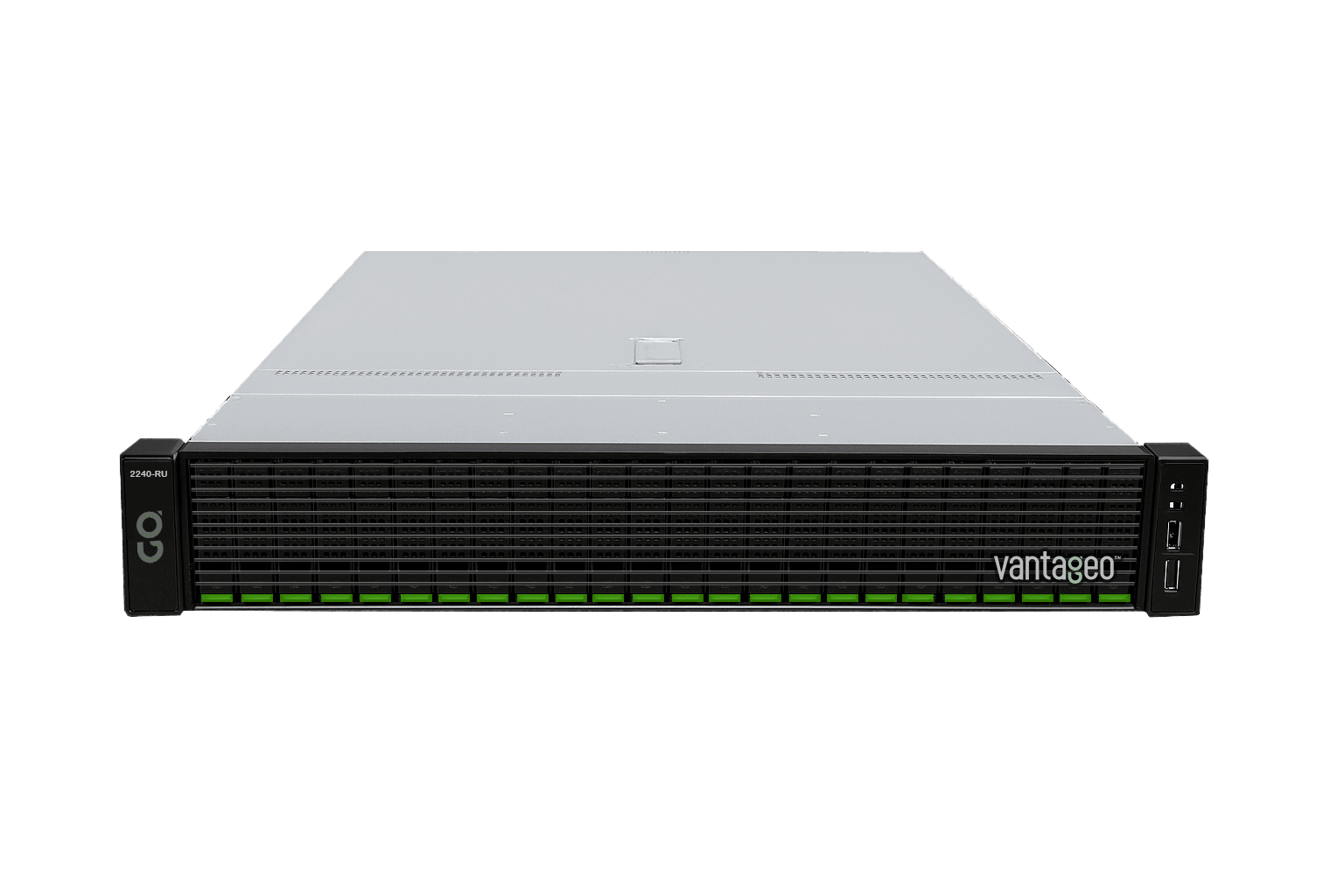

Vantageo 2240-RU
The Vantageo 2240-RU is a high-performance 2U rack server powered by 5th Gen Intel® Xeon® Scalable processors. It features a secure and reliable hardware-software architecture, delivering exceptional multi-core performance, high throughput, and advanced computing capabilities for AI, HPC, and enterprise workloads.
Easy Management Maintenance
ASUS ASMB11-iKVM with ASPEED AST2600 for remote monitoring.
ASUS Control Center and hardware Root-of-Trust for secure infrastructure management.
Energy Efficiency
1+1 redundant 80 PLUS Titanium/Platinum power supplies (1600W/2600W).
Enhanced air cooling (EVAC heatsink) and four high-efficiency system fans
Technical Specifications
| Form Factor | 2U rack server |
| Processor | 5th Gen Intel® Xeon® Scalable (up to 2 sockets) |
| Performance | 21% greater general-purpose performance per watt (vs. previous gen) |
| Chipset | Intel® C741 |
| Memory Slots | 32 (16 DIMMs per CPU, 8-channel) |
| Memory Types | DDR5: 5600/4800 MHz (1DPC), 4400 MHz (2DPC) |
| Max Memory Capacity | 4TB |
| DIMM Options | 16GB/32GB/64GB RDIMM; 128GB/256GB 3DS RDIMM |
| Drive Bays | Front: 12x 3.5"/2.5" hot-swap (8x NVMe/SAS/SATA + 4x NVMe/SATA) |
| Rear (Optional): 2x 2.5" hot-swap (NVMe/SATA) | |
| M.2 Slots: 2 | |
| PCIe Slots | 9 total: 6x PCIe 5.0 x8, 3x PCIe 5.0 x16 (including OCP 3.0 x16) |
| GPU Support | Up to 4 dual-slot GPUs (Intel Flex Series/NVIDIA A100) |
| Networking | Onboard: 4x 1GbE (Intel I350-AM4) or 2x 10GbE (Intel X710-AT2) RJ45 |
| OCP 3.0: PCIe 5.0 x16 (rear) | |
| Cooling | 4x system fans; EVAC heatsink for high-TDP CPUs |
| Management | ASUS ASMB11-iKVM (ASPEED AST2600), ASUS Control Center, Root-of-Trust |
| Front I/O | 2x USB 3.2 Gen1, Power/Location switches (LED) |
| Rear I/O | 2x USB 3.2 Gen1, 1x VGA, 1x Mgmt LAN, 2x 10GbE/4x 1GbE (optional) |
| Power Supply | 1+1 redundant: 1600W/2600W 80+ Titanium/Platinum |
| Dimensions | 840mm (D) × 447mm (W) × 88mm (H) |
| Weight | 26.85kg |
| Operating Support | 24x7 with 4-hour response (NBD/6-hour/24-hour resolution options) |
