  • 2240-RS

    2240-RS

High Performance and High Density

  • Supports dual 4th/5th Gen Intel® Xeon® Scalable processors with up to 8TB DDR5 memory (32 DIMMs at 5600MT/s).

  • Accommodates 12 hot-swap 3.5" NVMe/SAS/SATA drives and up to 1 double-width GPU (NVIDIA H100/A100).

High Scalability and High Bandwidth

  • Configurable PCIe 5.0 slots: 8x x8 or 4x x16 (including 2x AIOM/OCP 3.0 slots).

  • Optional SAS support via RAID/HBV cards

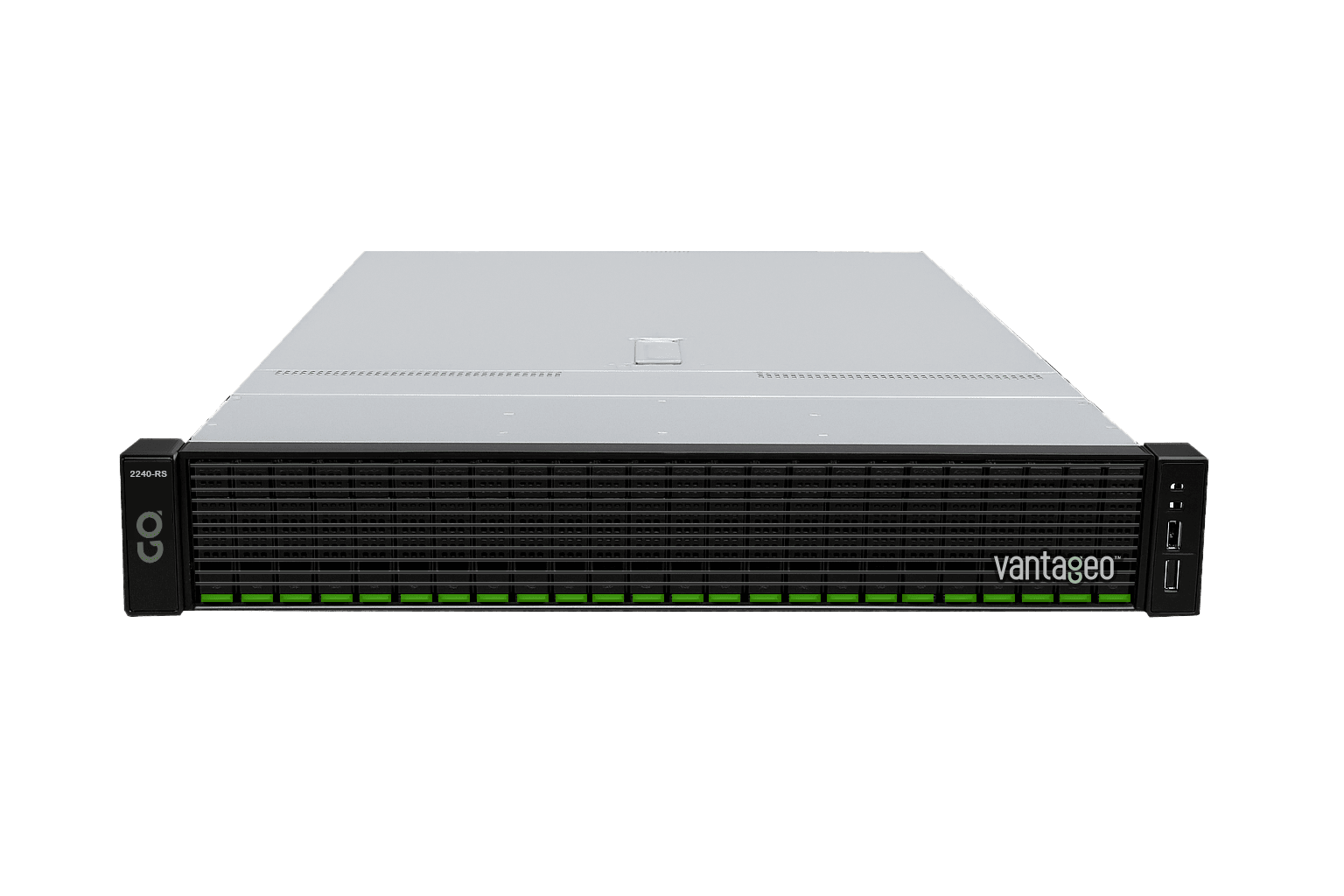

Vantageo 2240-RS

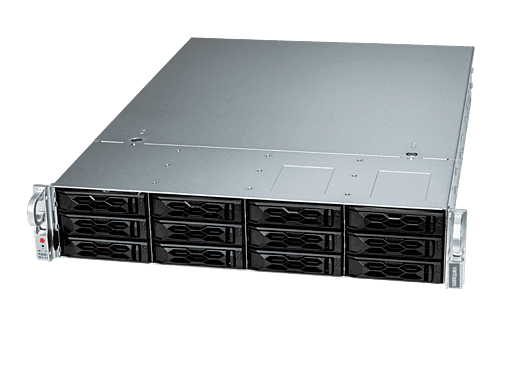

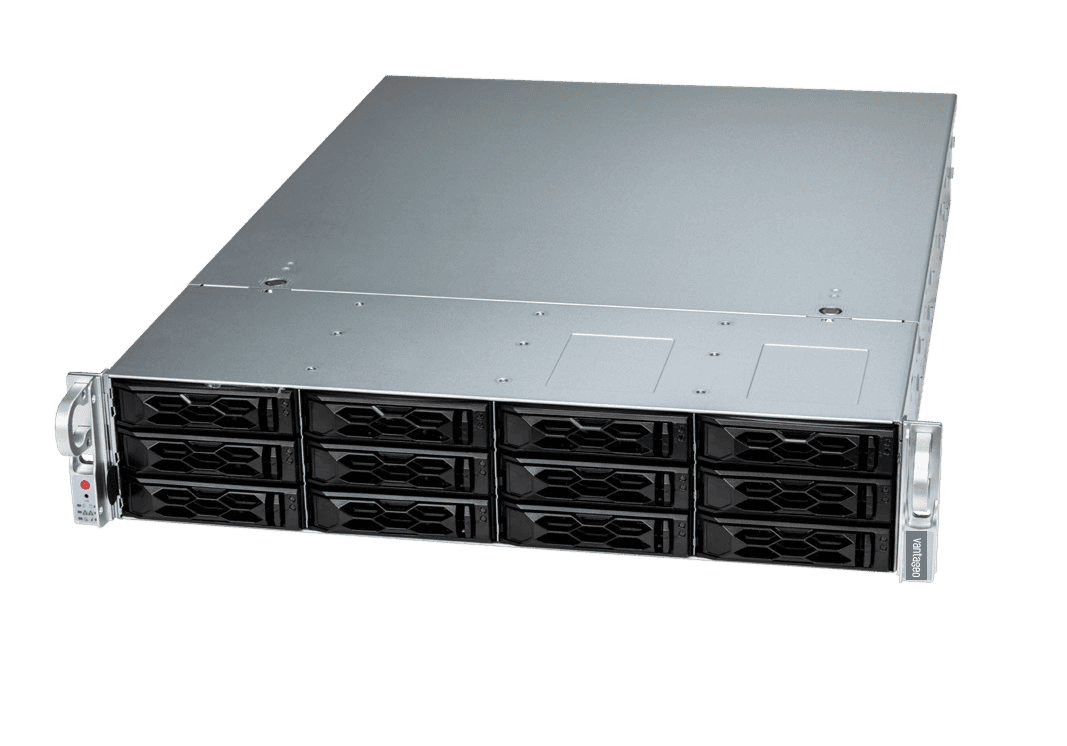

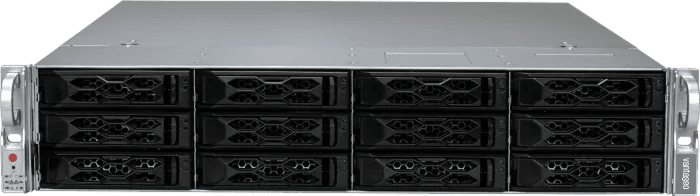

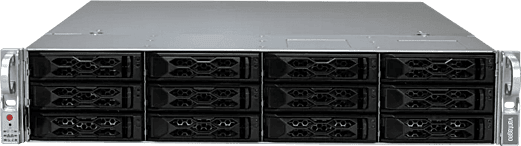

The Vantageo 2240-RS is a high-density 2U rack server powered by dual 4th/5th Gen Intel® Xeon® Scalable processors (LGA-4677). Designed for virtualization, AI, and enterprise workloads, it combines scalable performance with flexible storage and expansion capabilities.

Easy Management and Convenient Maintenance

  • IPMI 2.0 with KVM-over-LAN and virtual media support.

  • TPM 2.0 and NIST 800-193 compliant Root of Trust

Energy Efficiency

  • 2x 1200W 80 PLUS Titanium redundant power supplies.

  • 4x hot-swap fans with optimized speed control.

Technical Specifications

Form Factor2U rack server
ProcessorDual Socket E (LGA-4677), 4th/5th Gen Intel® Xeon® Scalable
Memory32 DIMM slots, DDR5 RDIMM: 5600MT/s (1DPC, 4TB max)/4400MT/s (2DPC, 8TB max)
Storage12x 3.5" hot-swap bays (NVMe/SAS/SATA)
GPU Support1x double-width GPU (NVIDIA H100, L40S, A40, A100)
Vantageo 2240-RS
Vantageo 2240-RS Datasheet New
Version: R1.0 | 2025 | PDF

No software files available for this model yet.

No firmware files available for this model yet.

Download Product Datasheet
Download Product Description
Download Product Manual
Download Product Drivers
Download Product - Bios
Download Product Firmware

Vantageo 2240-RS

The Vantageo 2240-RS is a high-density 2U rack server powered by dual 4th/5th Gen Intel® Xeon® Scalable processors (LGA-4677). Designed for virtualization, AI, and enterprise workloads, it combines scalable performance with flexible storage and expansion capabilities.

High Performance and High Density

    • Supports dual 4th/5th Gen Intel® Xeon® Scalable processors with up to 8TB DDR5 memory (32 DIMMs at 5600MT/s).

    • Accommodates 12 hot-swap 3.5" NVMe/SAS/SATA drives and up to 1 double-width GPU (NVIDIA H100/A100).

High Scalability and High Bandwidth

    • Configurable PCIe 5.0 slots: 8x x8 or 4x x16 (including 2x AIOM/OCP 3.0 slots).

    • Optional SAS support via RAID/HBV cards

Easy Management and Convenient Maintenance

    • IPMI 2.0 with KVM-over-LAN and virtual media support.

    • TPM 2.0 and NIST 800-193 compliant Root of Trust

Energy Efficiency

    • 2x 1200W 80 PLUS Titanium redundant power supplies.

    • 4x hot-swap fans with optimized speed control.

Technical Specifications

Form Factor2U rack server
ProcessorDual Socket E (LGA-4677), 4th/5th Gen Intel® Xeon® Scalable
Memory32 DIMM slots, DDR5 RDIMM: 5600MT/s (1DPC, 4TB max)/4400MT/s (2DPC, 8TB max)
Storage12x 3.5" hot-swap bays (NVMe/SAS/SATA)
GPU Support1x double-width GPU (NVIDIA H100, L40S, A40, A100)
