  • 2240-RA

High Performance and High Density

  • Supports dual 4th/5th Gen Intel® Xeon® Scalable processors (up to 350W TDP).

  • 32x DDR5 RDIMM slots (5600MT/s with Emerald Rapids, 4800MT/s with Sapphire Rapids).

  • 24x front-accessible 2.5" NVMe (PCIe 5.0 U.2) + 2x rear 2.5" SATA hot-swap bays.

High Scalability

  • 4x PCIe 5.0 slots (2x x16 for GPUs + 2x OCP 3.0).

  • 3x 8-bay NVMe PCIe Gen5 backplanes for ultra-fast storage

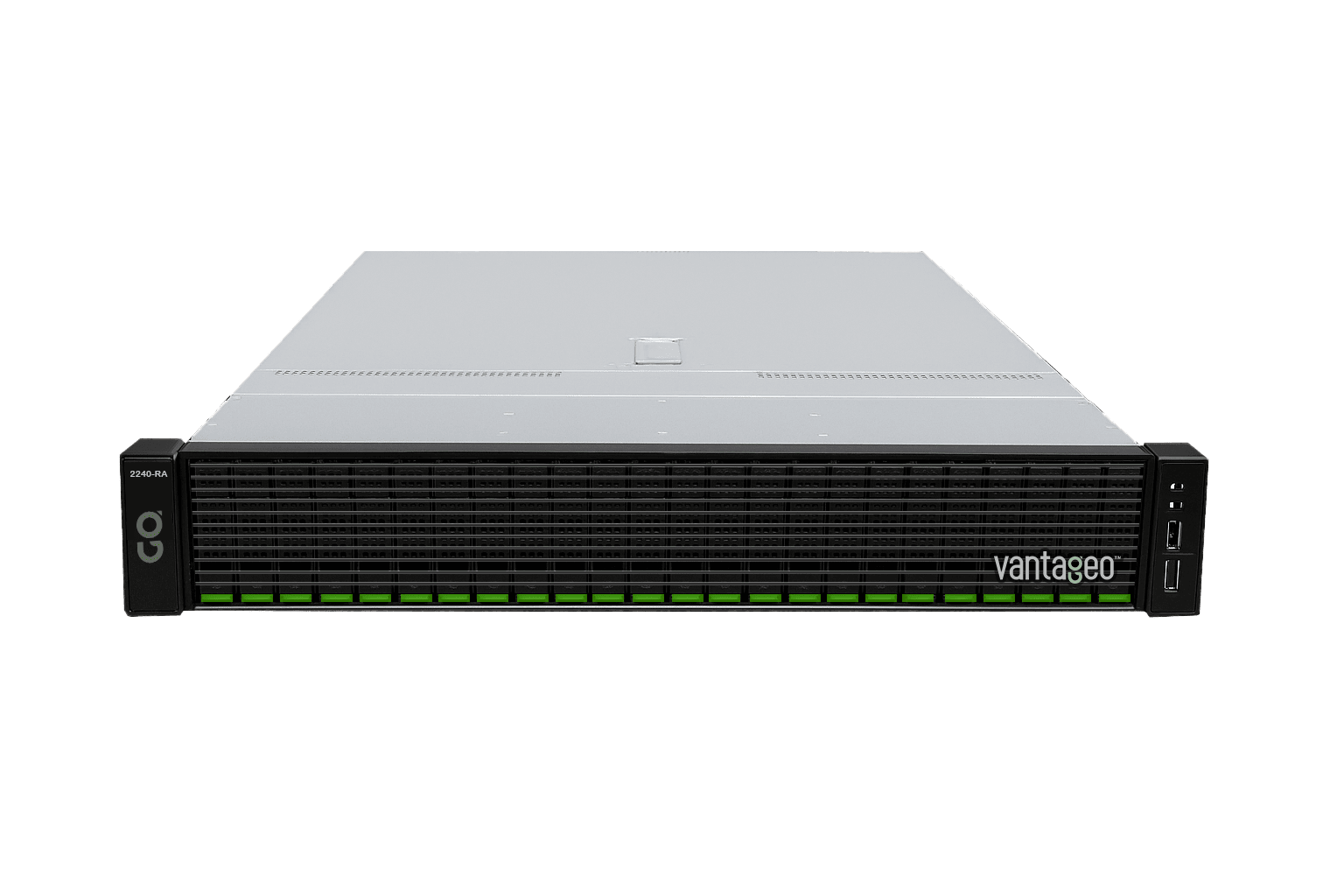

Vantageo 2240-RA

The Vantageo 2240-RA is a high-density 2U all-flash server designed for performance-critical workloads, supporting dual 4th/5th Gen Intel® Xeon® Scalable processors (Sapphire Rapids/Emerald Rapids). It combines massive storage capacity with cutting-edge PCIe Gen5 expansion for enterprise and data center applications.

Advance Management

  • Aspeed AST2600 BMC with IPMI 2.0, Redfish, and KVM-over-LAN.

  • AMI UEFI BIOS with TPM and secure boot capabilities.

Energy Efficiency

  • 2000W 80+ Platinum/Titanium redundant power supplies.

  • 6x hot-swap fans with optimized airflow design

Technical Specifications

Form Factor2U rack server
ProcessorDual 4th/5th Gen Intel® Xeon® Scalable (Sapphire Rapids/Emerald Rapids)
Memory32x DDR5 RDIMM: 5600MT/s (Emerald Rapids, 1DPC) or 4800MT/s (Sapphire Rapids)
StorageFront: 24x 2.5" NVMe (PCIe 5.0 U.2)
Rear: 2x 2.5" SATA hot-swap
Internal: 2x M.2 (PCIe Gen4)
GPU Support2x PCIe 5.0 x16 slots (reserved for GPUs)
