High Performance and High Density
High Scalability and High Bandwidth

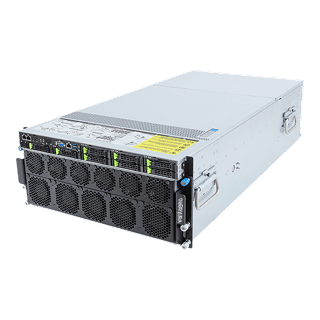

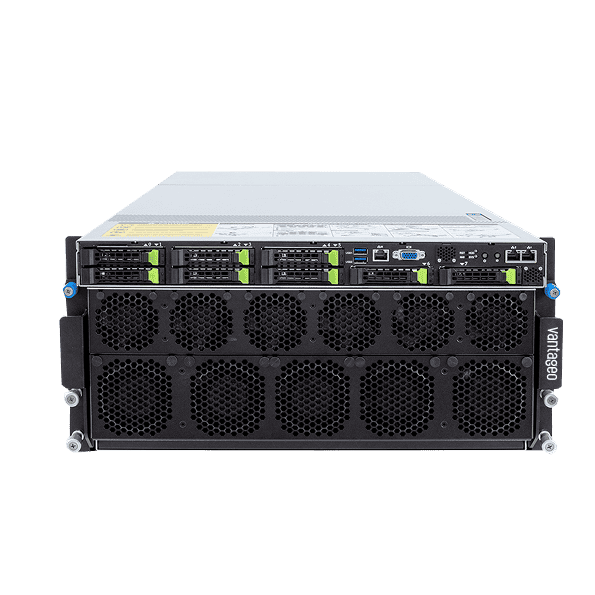

2450-RG-H200GPU
The Vantageo 2450-RG-H200GPU Server represents the pinnacle of AI and HPC computing, delivering unprecedented performance for the most demanding workloads. This powerhouse server combines 8x NVIDIA H200 Tensor Core GPUs with dual 4th/5th Gen Intel® Xeon® Scalable processors to achieve a staggering 32 petaFLOPS of FP8 deep learning performance and 1.1TB of aggregate high-bandwidth memory.
Easy Management and Convenient Maintenance
High Availability and High Reliability
Technical Specifications
| Category | Specifications |
|---|---|
| Processors | Dual 4th/5th Gen Intel® Xeon® Scalable or Xeon® Max Series (up to 350W TDP) |
| GPU Configuration | 8x NVIDIA H200 SXM5 GPUs with NVLink™/NVSwitch™ (1.1TB HBM, 900GB/s bandwidth) |
| Memory | 32x DDR5 DIMM slots (8-channel): • Up to 5600 MT/s (5th Gen) • Up to 4800 MT/s (4th Gen/Max) |
| Storage | • 8x 2.5" hot-swap Gen5 NVMe/SATA bays • 2x M.2 slots (PCIe Gen3) |
| Expansion Slots | • 8x FHHL single-slot PCIe Gen5 x16 • 4x FHHL dual-slot PCIe Gen5 x16 |
| Networking | • 2x 10GbE (Intel® X710-AT2) • 2x 1GbE management ports • NVIDIA ConnectX®-7 NIC support |
| Accelerators | NVIDIA BlueField®-3 DPUs for smart offloading |
| Power Supply | 4+4 3000W 80 PLUS Titanium redundant |
| Cooling System | 16x 80mm high-performance fans (16,400 RPM) with adaptive control |
| Security | TPM 2.0, hardware firewall, LDAP/RADIUS authentication |
| Management | HTML5 KVM, remote BIOS updates, power capping, SMTP alerts |
| Physical Dimensions | 447 × 351 × 920 mm (W×H×D) |
| Operating Environment | 10°C to 25°C, 8-80% humidity |
